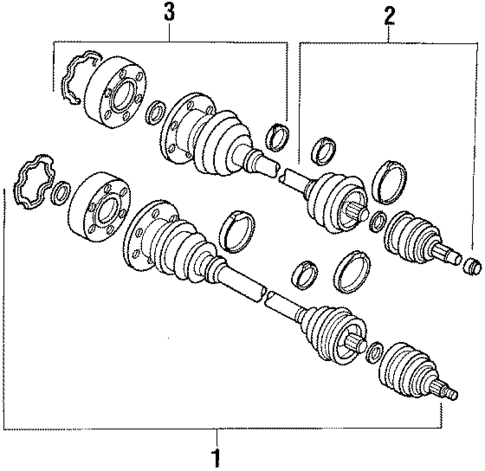

Rear Axle for 1991 Audi 80 Quattro
No.
Part # / Description / Price
Price
1
Drive Shaft Assembly
Audi
Audi Positions: Right
Description: 4wd, with abs to 8al360000. 4wd, with abs from 8al360001, with 20 valve.
1
Drive Shaft Assembly Audi
Audi Positions: Right
Description: 80 & 90 series. Right. From 8a-l-360-001. 4wd, with abs from 8al360001, without 20 valve.
1
Drive Shaft Assembly Audi
Audi Positions: Right
Description: 4wd, without abs. 80 & 90 series. Right. To 8a-l-360-000. Without anti-lock brakes.
1
Drive Shaft Assembly Audi
Audi Positions: Left
Description: 4wd, with abs from 8al360001, with 20 valve. From Chassis/VIN 8BL015001.
1
Drive Shaft Assembly Audi
Audi Positions: Left
Description: 80 & 90 series. Left. From 8a-l-360-001. 4wd, with abs from 8al360001, without 20 valve. 90/Quattro/Cabriolet. From 89-j-373-598. To 89-j-373-598. Coupe Quattro.
2
Outer Joint 1 Audi
Audi Positions: Right
Notes: PARTS: Order by chassis number & engine type.
Description: 2wd, with abs. 4wd, from 89j351001 without 20 valve, from 89j351001 without 20 valve.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price
N/A
Axle Assembly Audi
Audi Description: All models. 4wd, girling, 2 piston caliper. Coupe/80/90. 100 series. With Quattro. Left.
4
1988-2006 Audi - Wheel Bearing Audi
Audi Description: 80 & 90 series. A4. All models. Without Quattro. 75mm. Without Quattro, 4 cylinder. TT. 3.2l.
MSRP $188.32
$133.33
MSRP $188.32
$133.33
5
6
Control Arm Bushing Audi
Audi Description: 2wd. 4wd, to 8al045000. All models. 4000, Coupe. 4000s Quattro.
7
Coil Spring Audi
Audi Notes: Order By Description, Parts & Prices For Estimating Only.
Description: 4wd, standard height, from 8al045001. All models. From 8a-l-045-001.
10
Dash Control Unit Audi
Audi Description: All models. A6/S6. Right. Cabriolet. With Quattro. 15 brake disc. Coupe Quattro.
No.
Part # / Description / Price
Price
N/A
1990-2008 Audi - Companion Flange Audi
Audi Description: A4, S4. 4 & 6 cylinder. A4, S4. 8 cylinder. A6/S6. A8 Quattro. 2004-07. Allroad. 80 & 90 series. S8. Cabriolet S4. Coupe Quattro.
N/A
Differential Audi
Audi Notes: Order By Ratio & Differential Code, Parts & Prices For Estimating
Description: 80 & 90 series. Code letters ars.
N/A
Side Bearings Audi
Audi Notes: Order By Ratio & Differential Code, Parts & Prices For Estimating
Description: Right. 80 & 90 series. Code letters aec. 5000. Stamped ur. 4000 S Quattro. Stamped aec. 200 series. Code letters aet. Coupe Quattro.
1
Axle Housing Audi
Audi Description: 100 & 200 series. 80 & 90 series. 4000. Stamped aec. With v-8 Quattro. S4. 5000. Turbo Quattro s/wagon. Coupe Quattro.
2
Axle Cover Audi
Audi Description: All models. 100 series. 35 tooth ring gear. 200 series. 100 series. 41 tooth ring gear. 80 & 90 series. S4. 37 tooth ring gear.
3
Axle Shafts Audi
Audi Description: Left. 80 & 90 series. Code letters ars. 100 & 200 series. Code aec & cav. S4. Coupe Quattro.
3
Front Pinion Bearing Audi
Audi Description: All models. Code aec & cav. Right. 100 series. 3 speed. 80 & 90 series. 4 cylinder. Coupe Quattro.
4
Drive Unit Audi
Audi Description: Right. With 90 series. 100 series. 200 series. Code letters aat. With v-8 Quattro. S4.
6
Side Bearings Audi
Audi Description: All models. Right. A6/S6. A4, S4. A8 Quattro. Incl.Race. Allroad. 90. S8.
7
1988-2008 Audi - Gear Kit Audi
Audi Description: A6/S6. Cabriolet A4, S4. A8 Quattro. With 90 series. Allroad. With v8-Quattro. S8.
9
1988-2008 Audi - Pinion Shaft Audi
Audi Description: A4, S4. All models. A6/S6. TT. A8 Quattro. Allroad. 90. S8.
11
1984-2008 Audi - Rear Pinion Bearing Audi
Audi Description: All models. A4, S4. A6/S6. A8 Quattro. Allroad. Differential Code HCC. 90. S8. Differential Code FGL.
13
1984-2008 Audi - Pinion Spacer Audi
Audi Description: All models. A4, S4. A6/S6. A8 Quattro. Allroad. 90. S8.
15
Drive Shaft Assembly Audi
Audi Notes: Parts & Prices For Estimating Purpose Only.
Description: 80 & 90 series. Right. From 8a-l-360-001. 4wd, with abs from 8al360001, without 20 valve.
15
Drive Shaft Assembly Audi
Audi Notes: Parts & Prices For Estimating Purpose Only.
Description: 80 & 90 series. Left. From 8a-l-360-001. 4wd, with abs from 8al360001, without 20 valve. 90/Quattro/Cabriolet. From 89-j-373-598. To 89-j-373-598. Coupe Quattro.
17
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
Related Parts
Part # / Description / Price
Price
Inner Boot Audi
Audi Description: 5 cylinder, inner, 4wd. 4wd, without 20 valve from 89j350001, to 8al360000. 2wd, 4 cylinder. 4000, Coupe. 4 cylinder. 4 cylinder, inner, manual trans. To Chassis/VIN 85H026076. 4000, Coupe. 5 cylinder. 4000 Quattro.
