Inner Structure & Rails for 1988 Audi 5000

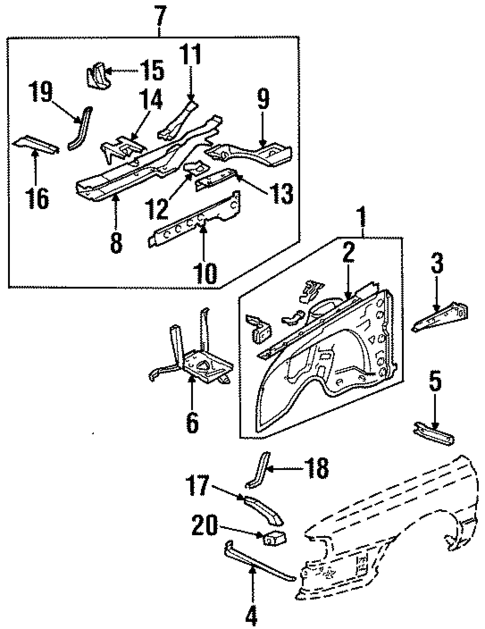

Inner Structure & Rails for 1988 Audi 5000 #0

1

1

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

2

2

20

20

3

3

4

4

5

5

6

6

7

7

8

8

9

9

No.

Part # / Description / Price

Price

1

443809105F - Body: Wheelhouse for Audi: 5000, 5000 Quattro Image

Wheelhouse Assembly

Audi

Audi

Positions: Left

Description: With turbo.

1

443809102K - Body: Wheelhouse for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Wheelhouse Assembly

Audi

Audi

Positions: Right

Description: Without 20 valve, without air bag. With turbo.

2

443805304B - Body: Reinforcement for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Upper Reinforced

Audi

Audi

Positions: Right

Description: Upper rail.

2

443805303B - Body: Reinforcement for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Upper Reinforced

Audi

Audi

Positions: Left

Description: Upper rail.

3

443809097 - Body: Reinforcement for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro, V8 Quattro Image

Reinforcement

Audi

Audi

Positions: Left

Description: Front. Hinge pillar.

3

443809098B - Body: Reinforcement for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Reinforcement

Audi

Audi

Positions: Right

Description: Hinge pillar. Front.

4

443821137 - Body: Reinforcement Bracket for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Fender Lower Brace

Audi

Audi

Positions: Left

Description: Front.

4

443821138 - Body: Reinforcement Bracket for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Fender Lower Brace

Audi

Audi

Positions: Right

Description: Front.

5

443809523 - Body: Reinforcement Bracket for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro, V8 Quattro Image

Fender Rear Bracket

Audi

Audi

Description: Rear.

6

443805213B - Body: Battery Tray for Audi: 5000 Image

Battery Tray

Audi

Audi

7

443803102F - Body: Side Rail for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Side Rail Assembly

Audi

Audi

Positions: Right

Description: Without air bag. With turbo.

7

443803101F - Body: Side Rail for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Side Rail Assembly

Audi

Audi

Positions: Left

Description: Without air bag. With turbo.

8

443803110C - Body: Front Section for Audi: 5000, 5000 Quattro Image

Front Section

Audi

Audi

Positions: Right

8

443803109C - Body: Front Section for Audi: 5000, 5000 Quattro Image

Front Section

Audi

Audi

Positions: Left

9

443803104B - Body: Rear Section for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Rear Section

Audi

Audi

Positions: Right

Description: Without air bag.

9

443803103B - Body: Rear Section for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Rear Section

Audi

Audi

Positions: Left

Description: Without air bag.

10

443803157D - Body: Filler Plate for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Filler Plate

Audi

Audi

Positions: Left

Description: Side.

10

443803158A - Body: Filler Plate for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Filler Plate

Audi

Audi

Positions: Right

Description: Side.

11

443803884A - Body: Front Extension for Audi: 5000, 5000 Quattro Image

Front Extension

Audi

Audi

Positions: Right

11

443803883D - Body: Front Extension for Audi: 5000, 5000 Quattro Image

Front Extension

Audi

Audi

Positions: Left

12

4A0803115C - Body: Reinforcement for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro, A6, A6 Quattro, S4, S6 Image

Side Member Reinforcement

Audi

Audi

Positions: Left

Description: Rear. Front sidemember.

12

4A0803116 - Body: Reinforcement for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Reinforcement

Audi

Audi

Positions: Right

Description: Rear. Front sidemember.

13

443803121A - Body: Reinforcement for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro, V8 Quattro Image

Reinforcement

Audi

Audi

Description: Upper. Rear sidemember.

14

443803030 - Body: Mount Bracket for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Mount Bracket

Audi

Audi

Positions: Right

15

443803029 - Body: Mount Bracket for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Mount Bracket

Audi

Audi

Positions: Left

16

443805856 - Body: Apron Assembly for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Apron Assembly

Audi

Audi

Positions: Right

Description: Mount assembly. Front, lower.

17

443805855 - Body: Apron Assembly for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Apron Assembly

Audi

Audi

Positions: Left

Description: Mount assembly. Front, lower.

18

443805870 - Body: Apron Assembly for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Apron Assembly

Audi

Audi

Positions: Right

Description: Upper mount. Front strut.

19

443805869 - Body: Apron Assembly for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro Image

Apron Assembly

Audi

Audi

Positions: Left

Description: Upper mount. Front strut.

20

4A0805677C - Body: Mount for Audi: 100, 100 Quattro, 200, 200 Quattro, 5000, 5000 Quattro, A6, A6 Quattro, S4, S6 Image

Side Member Mount

Audi

Audi

Description: Bumper absorber. Front lower.
